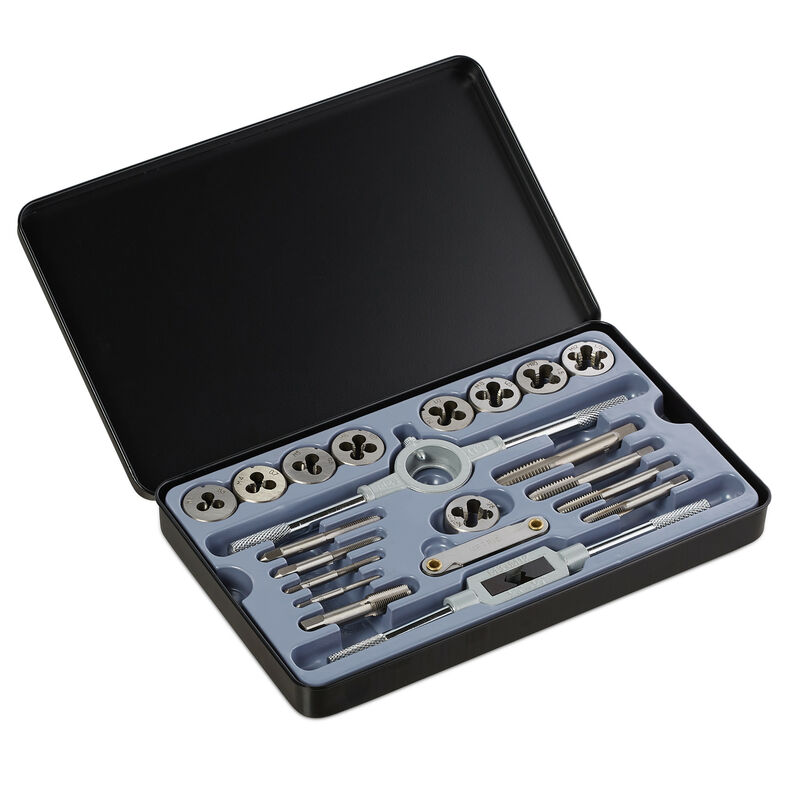

Relaxdays Tap And Die Set, Tool Kit, Includes 9 Dies & Taps In Size M3 - M12, Wrench, Thread Gauge, Case Holder, Silver

Name: Relaxdays Tap And Die Set, Tool Kit, Includes 9 Dies & Taps In Size M3 - M12, Wrench, Thread Gauge, Case Holder, Silver
Brand: Relaxdays
SKU: 10033743_0_ES
Price: 48.9 GBP
Availability: InStock

Relaxdays Tap And Die Set, Tool Kit, Includes 9 Dies & Taps In Size M3 - M12, Wrench, Thread Gauge, Case Holder, Silver thumbnail

Price Alert

★ 4.9

£48.90

Best price from manomano.co.uk

Price Alert

★ 4.9

£48.90

Best price from manomano.co.uk

Price Alert

★ 4.9

£48.90

Best price from manomano.co.uk

manomano.co.uk

£48.90

free

Price details

Lowest price for a new Relaxdays Tap And Die Set, Tool Kit, Includes 9 Dies & Taps In Size M3 - M12, Wrench, Thread Gauge, Case Holder, Silver is £48.90. This is currently the cheapest offer among 1 stores.

Product Information

Thread Cutter in Detail - Case H x W x D: approx. 2.5 x 25 x 15.5 cm - Tap wrench H x W x D: approx. 1 x 20 x 2 cm - Die holder H x W x D: approx. 1.5 x 21.5 x 4 cm - Die H x D: approx. 1 x 2.5 cm - Tool made of carbon steel with zinc alloy Sizes Included - Cutting dies: M3 x 0.5, M4 x 0.7, M5 x 0.8, M6 x 1.0, M7 x 1.0, M8 x 1.25, M10 x 1.5, M12 x 1.75, 1/8 NPT27 - Tap: M3, M4, M5, M6, M7, M8, M10, M12, 1/8 NPT27 - Thread gauge: 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 27, 28 Internal Thread Instructions - Drill a core hole of the correct size (see core hole dimensions). - Clamp tap in tap wrench and lubricate with cutting fluid - Turn the tap clockwise under light pressure. - Turn back each half turn to break the chip External Thread Instructions - Measure bolt diameter to determine thread size - Chamfer the stud with a file to a conical shape - Insert die into holder and tighten screw - Place straight on the stud and lubricate with cutting fluid - Turn the stud with light pressure - Turn back occasionally to break chips - Turn until desired thread length is achieved Metric thread Nominal size - Pitch - Core hole - Bolt in mm - M3 - 0.5 - 2.5 - 2.9 - M4 - 0.7 - 3.3 - 3.9 - M5 - 0.8 - 4.2 - 4.9 - M6 - 1.0 - 5 - 5.9 - M7 - 1.0 - 6 - 6.9 - M8 - 1.25 - 6.8 - 7.9 - M10 - 1.5 - 8.5 - 10 - M12 - 1.75- 10.2 - 11.8 Core Hole Dimensions for NPT - Thread size: 1/8" - 27 NPT - Pitch: 27 threads per inch - Lead: 0.941 mm - Outer diameter: 10.242 mm - Core hole: 8.25 mm
